The Automotive Air Conditioning Expansion Valve: The Key to Precise Temperature Control

When we enjoy the cool air in summer or the warm breeze in winter inside our cars, we rarely think about the small but crucial component that makes it all possible—the expansion valve. This seemingly insignificant part plays a vital role in regulating the temperature within the car, ensuring that the air conditioning system operates efficiently and provides us with a comfortable environment. In this article, we will delve into the workings of the automotive air conditioning expansion valve, exploring its structure, function, and significance in maintaining the ideal cabin temperature.

The Basic Structure and Function of the Expansion Valve

The expansion valve is an essential component of the automotive air conditioning system. It is typically installed at the entrance of the evaporator and serves as the boundary between the high-pressure and low-pressure sides of the refrigeration cycle. Its primary function is to control the flow of refrigerant into the evaporator, thereby regulating the cooling capacity of the air conditioning system.

The expansion valve consists of several key parts, including the valve body, sensing bulb, and capillary tube. The sensing bulb is filled with a refrigerant that expands or contracts based on the temperature of the refrigerant vapor at the evaporator outlet. This temperature change is transmitted through the capillary tube to the diaphragm inside the valve body, which in turn adjusts the opening of the valve to control the flow of refrigerant.

Types of Expansion Valves

There are mainly two types of expansion valves used in automotive air conditioning systems: internally balanced and externally balanced.

Internally Balanced Expansion Valves

Internally balanced expansion valves are designed to control the refrigerant flow based on the pressure difference between the inlet and outlet of the evaporator. The sensing bulb is attached to the evaporator outlet pipe, and the capillary tube connects it to the diaphragm inside the valve body. When the temperature of the refrigerant vapor at the evaporator outlet increases, the pressure inside the sensing bulb rises, causing the diaphragm to expand and open the valve wider. This allows more refrigerant to flow into the evaporator, increasing the cooling effect. Conversely, when the temperature decreases, the valve closes partially to reduce the refrigerant flow.

Externally Balanced Expansion Valves

Externally balanced expansion valves are used in systems where the pressure drop across the evaporator is significant. These valves have an additional external balance line that connects to the evaporator outlet, allowing for more accurate control of the refrigerant flow. The external balance line helps to compensate for the pressure differences caused by the evaporator's design, ensuring that the refrigerant flow is always optimized for the best cooling performance.

The Working Principle of the Expansion Valve

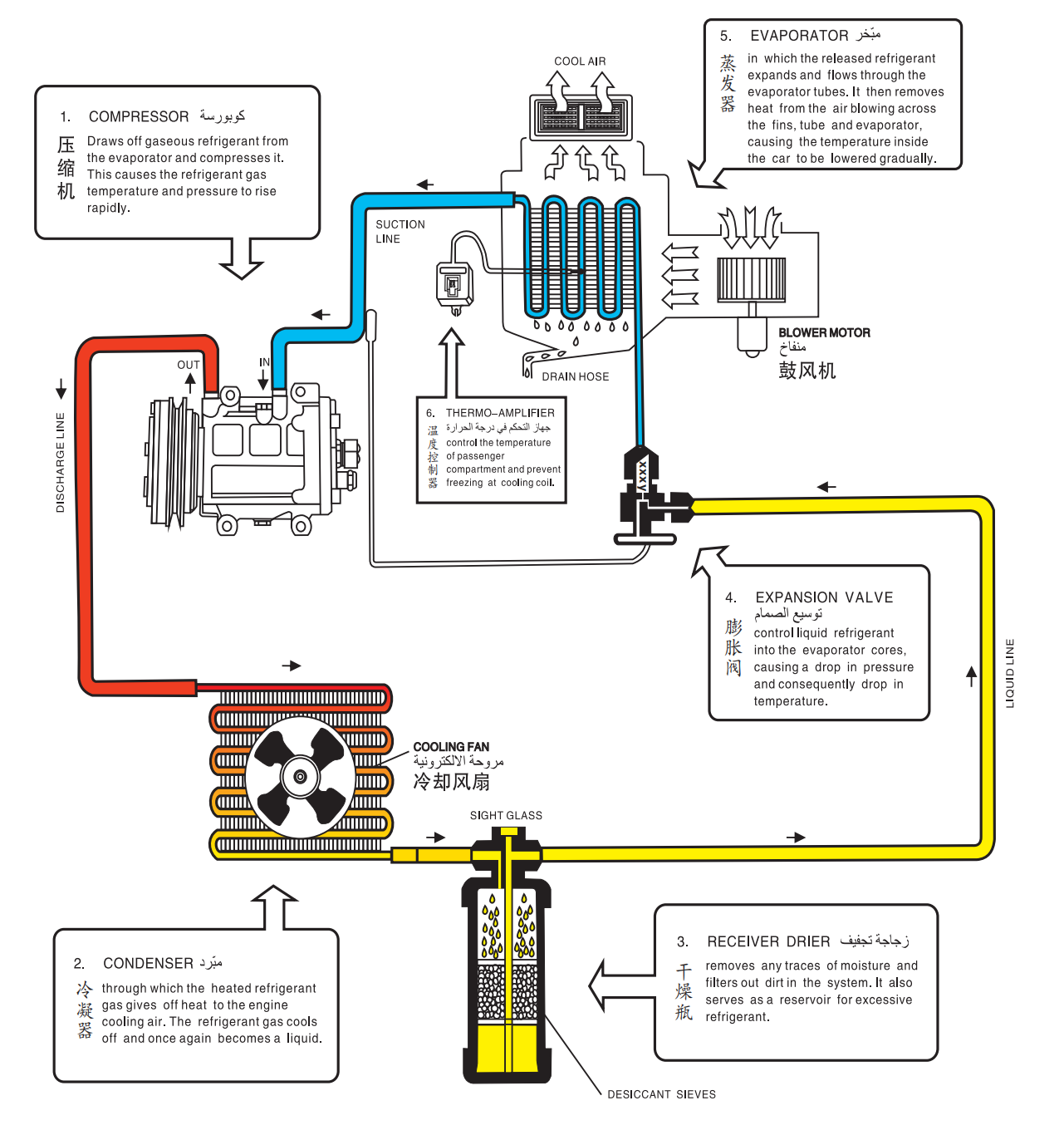

The working principle of the expansion valve is based on the principles of thermodynamics and fluid mechanics. When the air conditioning system is turned on, the refrigerant, which is in a high-pressure liquid state, flows through the expansion valve. As it passes through the narrow orifice of the valve, the refrigerant undergoes a rapid expansion, causing its pressure and temperature to drop significantly. This low-pressure, low-temperature refrigerant then enters the evaporator, where it absorbs heat from the surrounding air, cooling the cabin.

The sensing bulb plays a crucial role in this process. It constantly monitors the temperature of the refrigerant vapor at the evaporator outlet and adjusts the valve opening accordingly. By maintaining an optimal level of superheat (the difference between the actual temperature of the refrigerant vapor and its saturation temperature), the expansion valve ensures that the refrigerant is fully vaporized before it reaches the compressor. This prevents liquid refrigerant from entering the compressor, which could cause damage.

The Importance of the Expansion Valve in Temperature Control

The expansion valve is the key to precise temperature control in automotive air conditioning systems. By accurately regulating the flow of refrigerant into the evaporator, it can adapt to varying cooling demands and maintain a stable cabin temperature. For example, when the sun is shining brightly and the cabin temperature rises, the expansion valve will open wider to allow more refrigerant to flow through the evaporator, providing more cooling. Conversely, when the cabin temperature is already low, the valve will close partially to reduce the refrigerant flow and prevent overcooling.

Moreover, the expansion valve also plays a crucial role in protecting the air conditioning system. It prevents the compressor from experiencing liquid slugging, a condition where liquid refrigerant enters the compressor and causes damage due to the sudden increase in pressure. By ensuring that the refrigerant is fully vaporized before it reaches the compressor, the expansion valve helps to prolong the life of the compressor and other components.

Modern Developments and Future Trends

With the advancement of technology, modern automotive air conditioning systems are increasingly adopting electronic expansion valves. These valves use electronic sensors and control units to monitor various parameters such as cabin temperature, outside temperature, and refrigerant pressure. The control unit then adjusts the valve opening in real-time, providing even more precise temperature control and improved energy efficiency.

In addition to electronic expansion valves, other innovations in automotive air conditioning technology include variable-speed compressors and advanced refrigerants with lower global warming potential. These developments aim to improve the overall efficiency and environmental performance of air conditioning systems while maintaining or enhancing the comfort level for passengers.

The automotive air conditioning expansion valve may be a small component, but its role in maintaining a comfortable cabin temperature cannot be overstated. By precisely controlling the flow of refrigerant into the evaporator, it ensures that the air conditioning system operates efficiently and provides the desired cooling effect. Whether it is a traditional mechanical expansion valve or a modern electronic one, this component is essential for the proper functioning of the air conditioning system.
