The Condenser in Your Car’s Air Conditioning System: The Thermodynamic Principles Behind Heat Dissipation

 I. Introduction to the Condenser

The condenser is a critical component of your car’s air conditioning (AC) system, responsible for dissipating the heat absorbed by the refrigerant during the cooling process. It plays a vital role in maintaining the efficiency and effectiveness of the AC system.

 A. Structure and Function

 Structure: The condenser is typically a series of metal tubes and fins, designed to maximize surface area for efficient heat transfer. It is usually located at the front of the car, where it can take advantage of the airflow generated by the car’s movement.

 Function: As the high-temperature, high-pressure refrigerant gas from the compressor flows through the condenser, it releases heat to the surrounding air, cooling down and condensing into a high-pressure liquid.

 II. The Thermodynamic Principles of Heat Dissipation

 A. Heat Transfer Mechanisms

The primary function of the condenser is to transfer heat from the refrigerant to the ambient air. This process involves three main types of heat transfer:

 Conduction: Heat transfer through the walls of the condenser tubes. The metal tubes conduct heat from the refrigerant to the fins.

 Convection: Heat transfer between the condenser fins and the surrounding air. Airflow over the fins helps to dissipate the heat.

 Radiation: Heat transfer through electromagnetic waves, though this is minimal in comparison to conduction and convection.

 B. The Role of Airflow

Effective heat dissipation in the condenser relies heavily on airflow. The condenser is typically located at the front of the car, where it can capitalize on the airflow generated by the car’s movement. Additionally, most cars are equipped with a cooling fan that activates when the AC system is operating to ensure adequate airflow, especially at low speeds or when the car is stationary.

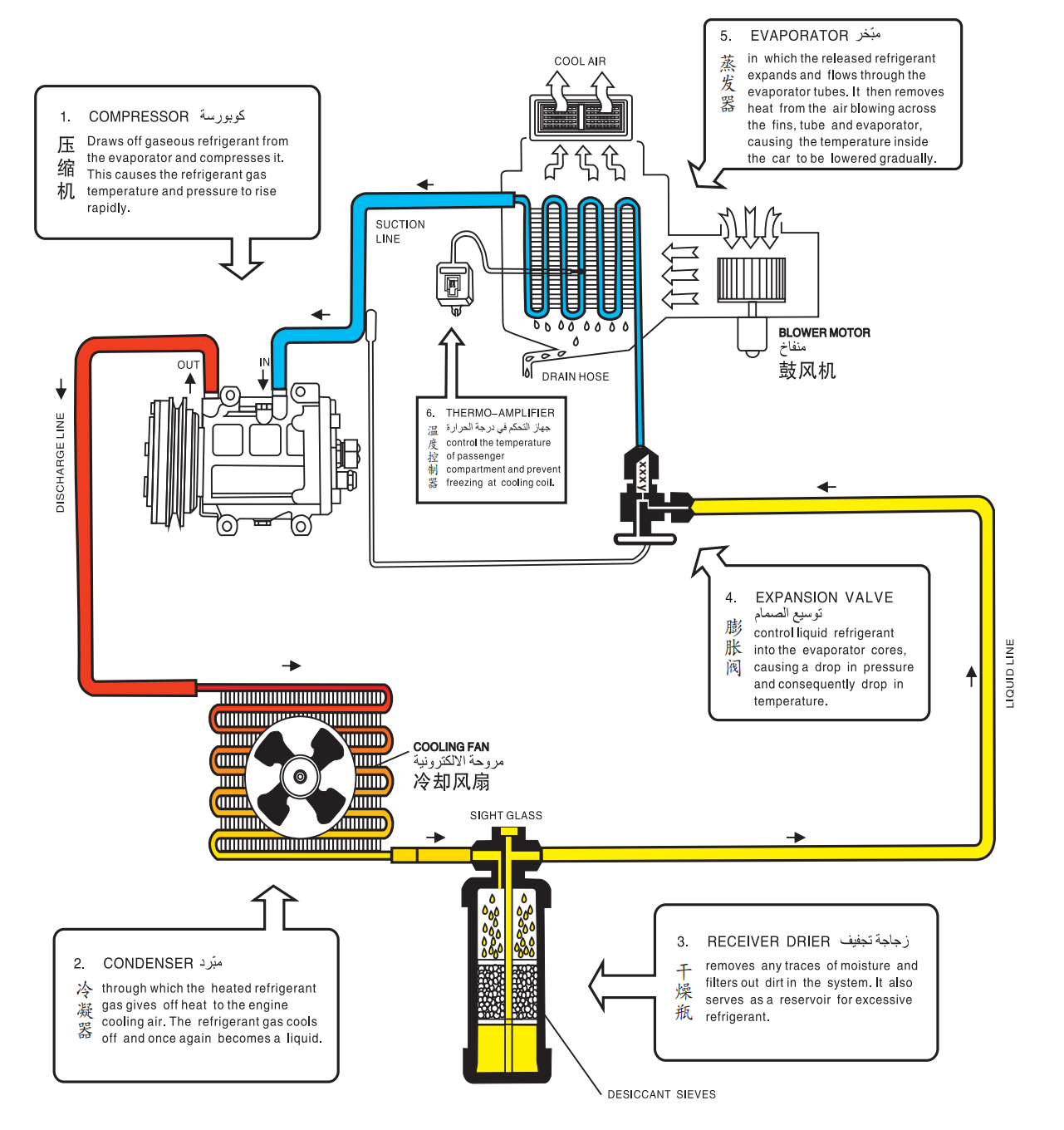

 III. How the Condenser Works

 A. High-Pressure, High-Temperature Refrigerant

The refrigerant enters the condenser as a high-temperature, high-pressure gas from the compressor. As it flows through the condenser tubes, it releases heat to the surrounding air.

 B. Heat Release and Condensation

As the refrigerant releases heat, its temperature drops, and it condenses into a high-pressure liquid. This phase change from gas to liquid is crucial for the AC system’s efficiency, as it allows the refrigerant to absorb more heat in the evaporator.

 C. Cooling Fan Activation

When the AC system is operating, the cooling fan activates to ensure sufficient airflow over the condenser. This is particularly important at low speeds or when the car is stationary, as natural airflow may not be sufficient to dissipate the heat effectively.

 IV. Common Issues and Maintenance

 A. Common Issues

 Clogging: Debris and dirt can clog the condenser fins, reducing heat transfer efficiency.

 Leakage: Corrosion or damage to the condenser can cause refrigerant leakage.

 Poor Airflow: A malfunctioning cooling fan or obstructed airflow can reduce the condenser’s effectiveness.

 B. Maintenance Tips

 Regular Cleaning: Keep the condenser free of debris and dirt to ensure efficient heat transfer.

 Inspect for Leaks: Regularly check for refrigerant leaks and address them promptly.

 Fan Maintenance: Ensure the cooling fan is in good working condition and operates correctly.

 V. Detailed Look at the Condenser

 A. Construction Materials

 Tubes: Typically made of aluminum or copper for efficient heat transfer.

 Fins: Thin metal sheets that increase the surface area for better heat dissipation.

 B. Design Considerations

 Compact Design: Modern condensers are designed to be compact while maximizing heat transfer efficiency.

 Durability: Materials and construction methods are chosen to withstand the harsh conditions under the hood.

 VI.

The condenser is a vital component in your car’s air conditioning system, responsible for dissipating the heat absorbed by the refrigerant. Understanding the thermodynamic principles behind its operation helps to appreciate its importance in maintaining the efficiency and effectiveness of the AC system. Proper maintenance and regular inspection of the condenser can significantly enhance the performance and longevity of your car’s air conditioning system.
