Views: 0 Author: Site Editor Publish Time: 2025-08-18 Origin: Site

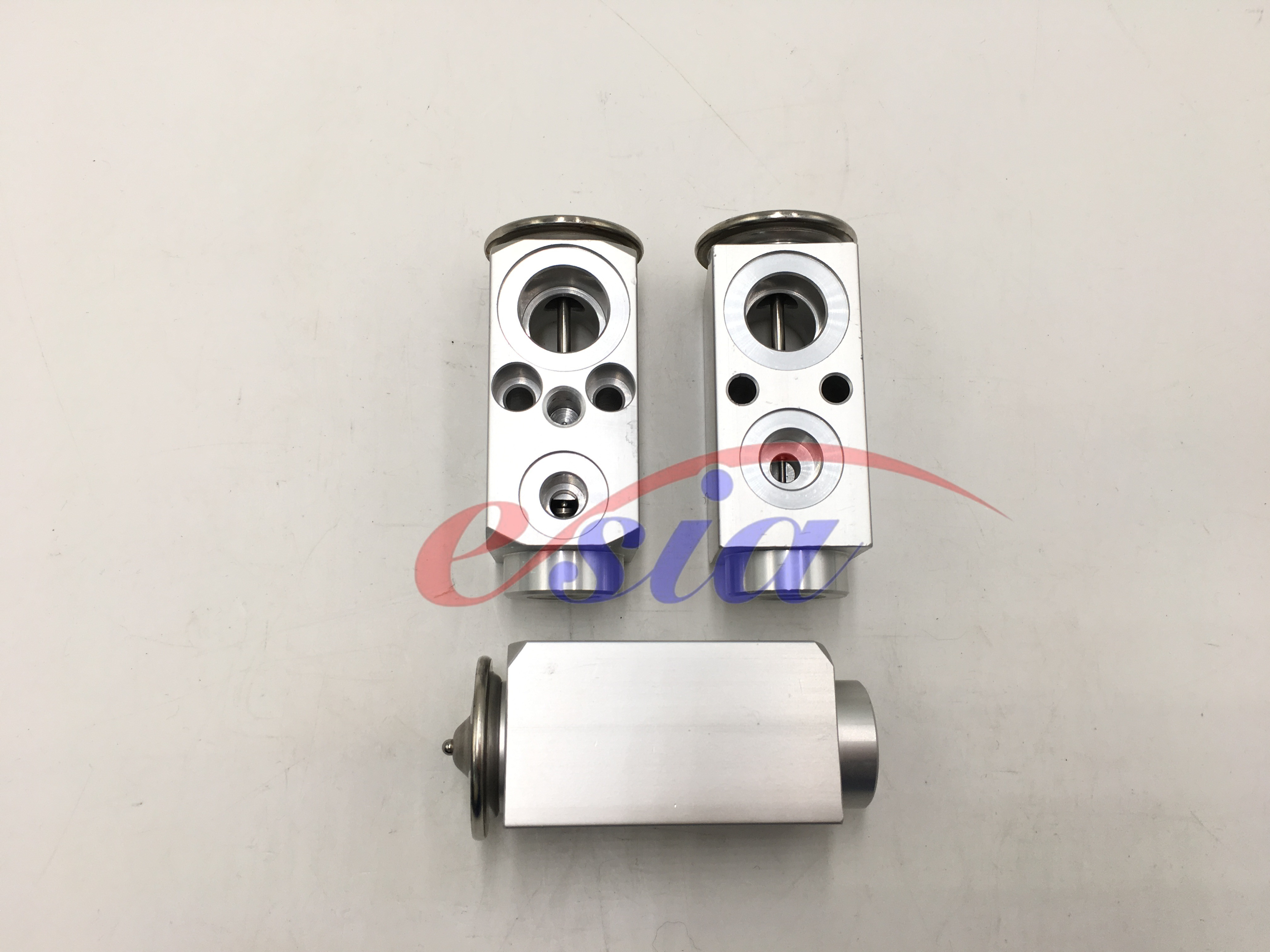

The expansion valve is a crucial component of a car’s air conditioning (AC) system, acting as a precise “flow regulator” to ensure that the system operates efficiently and stably. It comprises several key components: the valve body, sensing bulb, and capillary tube.
Valve Body: This is the core part of the expansion valve. Inside the valve body is a movable needle valve that controls the refrigerant flow.
Sensing Bulb: Installed at the outlet of the evaporator, the sensing bulb detects temperature changes in the refrigerant exiting the evaporator and sends signals to the valve body, allowing it to automatically adjust the needle valve.
Capillary Tube: It connects the sensing bulb and valve body, transmitting pressure signals between them.

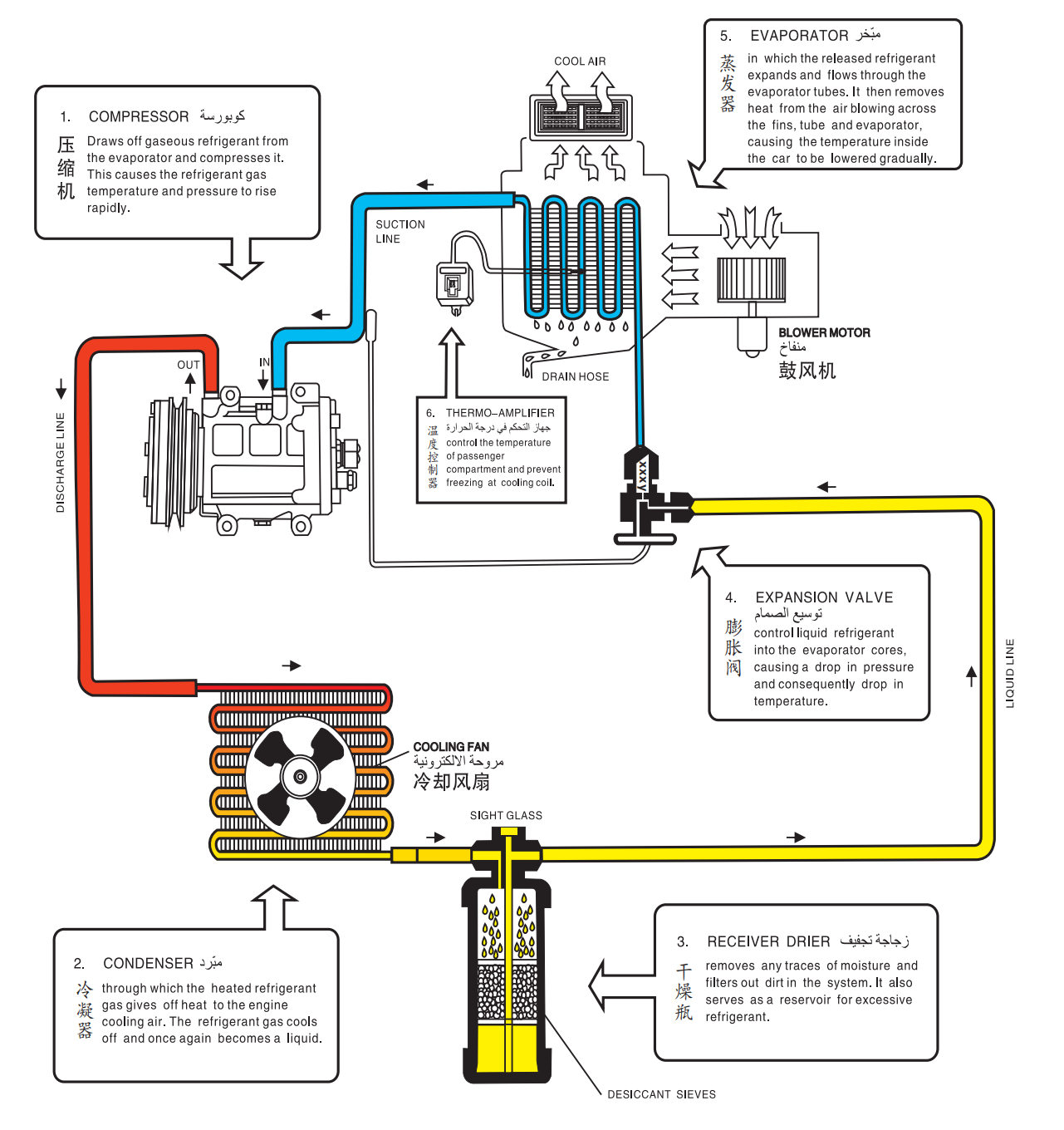

The AC system in a car operates through a complex thermodynamic cycle, and the expansion valve plays a vital role in this. When the AC system is activated, the compressor pressurizes the low-temperature, low-pressure refrigerant gas into a high-temperature, high-pressure gas, which is then sent to the condenser for cooling. The refrigerant is cooled into a high-pressure liquid in the condenser. Next, the high-pressure liquid refrigerant passes through the expansion valve and enters the evaporator.
As the high-pressure liquid refrigerant passes through the expansion valve, it rapidly expands into a low-temperature and low-pressure mixture of liquid and gas. This is an adiabatic throttling process during which the temperature of the refrigerant drops sharply. When this low-temperature, low-pressure refrigerant enters the evaporator, it absorbs heat from the surrounding air, lowering the temperature of the air around the evaporator to achieve cooling. The expansion valve automatically adjusts the opening of the needle valve based on the temperature changes detected by the sensing bulb, ensuring that the refrigerant in the evaporator can evaporate completely while preventing the evaporator from freezing.
III. Functions of the Expansion ValveA. Controlling Refrigerant Flow
The primary function of the expansion valve is to control the flow of the refrigerant entering the evaporator. If the refrigerant flow is too high, the refrigerant in the evaporator will not evaporate completely, leading to icing on the evaporator surface and reduced cooling efficiency. If the flow is too low, the refrigerant will not absorb enough heat, thereby diminishing the cooling effect. By automatically adjusting the needle valve, the expansion valve ensures that the refrigerant flow is always optimal for efficient AC system operation.
B. Preventing Evaporator Icing
Evaporator icing is a common issue in car AC systems; however, an expansion valve can effectively prevent it. When the sensing bulb detects that the temperature of the refrigerant exiting the evaporator is too low, the expansion valve automatically reduces the needle valve opening to decrease the refrigerant flow, preventing the evaporator surface temperature from dropping too low and causing ice formation. This not only protects the evaporator but also extends the life of the AC system.
C. Enhancing Cooling Efficiency
The expansion valve can automatically adjust the refrigerant flow based on the load of the AC system, ensuring that the system operates efficiently under different conditions. For example, in hot weather, the load of the AC system increases, and the expansion valve adjusts to maintain optimal performance. In cold weather, the load decreases, and the valve is adjusted accordingly. This precise control improves the cooling efficiency and reduces the energy consumption.
A. Thermal Expansion Valves
Thermal expansion valves are the most common type of expansion valve. They used a sensing bulb to detect temperature changes in the refrigerant exiting the evaporator and automatically adjusted the needle valve. These valves are simple in structure, reliable, and cost-effective, making them widely used in various automobile AC systems. However, their adjustment precision is relatively low, which can limit the control accuracy of AC systems.
B. Electronic Expansion Valves
With the advancement of automotive technology, electronic expansion valves have become increasingly prevalent. These valves use an electronic control system to monitor various parameters of the AC system, such as the evaporator temperature, refrigerant pressure, and vehicle speed. The electronic controller then automatically adjusted the needle valve. Electronic expansion valves offer high adjustment precision, fast response times, and flexible control, significantly enhancing the performance and comfort of AC systems. However, they are more expensive and require sophisticated electronic control systems; therefore, they are currently used mainly in high-end car AC systems.
A. Common Faults
Expansion valves may encounter several issues during use, such as blockages, ice formation, sensing bulb damage, and needle valve sticking (NS). Blockages and ice formation can reduce the refrigerant flow and cooling efficiency. A damaged sensing bulb can cause the expansion valve to lose its automatic adjustment function, thereby leading to an improper refrigerant flow. A stuck needle valve can result in excessive or insufficient refrigerant flow, thereby affecting the normal operation of the AC system.
B. Fault Diagnosis
When your car’s AC system experiences problems such as poor cooling or evaporator icing, you should first check the expansion valve. The following are some diagnostic methods:
1. Inspect the expansion valve for visible damage or deformation.
2. Check whether the sensing bulb is securely installed and free from damage or leaks.
3. Measure the pressure at the inlet and outlet of the expansion valve. A significant pressure difference may indicate blockage or ice formation.
4. Check the surface temperature of the evaporator. An abnormally low temperature may suggest a damaged sensing bulb or a stuck needle valve.
C. Repair Methods
If a fault is detected in the expansion valve, it should be repaired or replaced promptly. When repairing an expansion valve, keep the following in mind:
1. Ensure the new expansion valve matches the original model to avoid affecting the AC system’s performance.
2. After replacing the expansion valve, perform vacuum extraction and refrigerant charging on the AC system to eliminate any air or impurities.
3. Test-run the AC system after repair to check if the cooling performance is normal and if the expansion valve is functioning correctly.
The expansion valve is a vital component in your car’s AC system, precisely controlling refrigerant flow to ensure efficient and stable operation and providing a comfortable temperature environment inside the vehicle. Understanding the working principles and functions of the expansion valve can help you better use and maintain your car’s AC system, extending its lifespan and enhancing ride comfort. Regular inspection and maintenance of the expansion valve are also essential to ensure the normal operation of the AC system.
