The Hidden Hero Behind Car Air Conditioning: The Condenser

Introduction

In modern vehicles, the air conditioning system is an indispensable comfort feature, particularly during the hot summer or cold winter months. It provides occupants with a comfortable interior environment. As one of the core components of the air conditioning system, the automotive air conditioning condenser plays a crucial role. It not only affects the cooling performance of the air conditioning system but also directly impacts the overall operational efficiency and lifespan of the system. This article will provide a detailed explanation of the working principle of the automotive air conditioning condenser, helping readers better understand its importance in the automotive air conditioning system.

The Importance of the Condenser

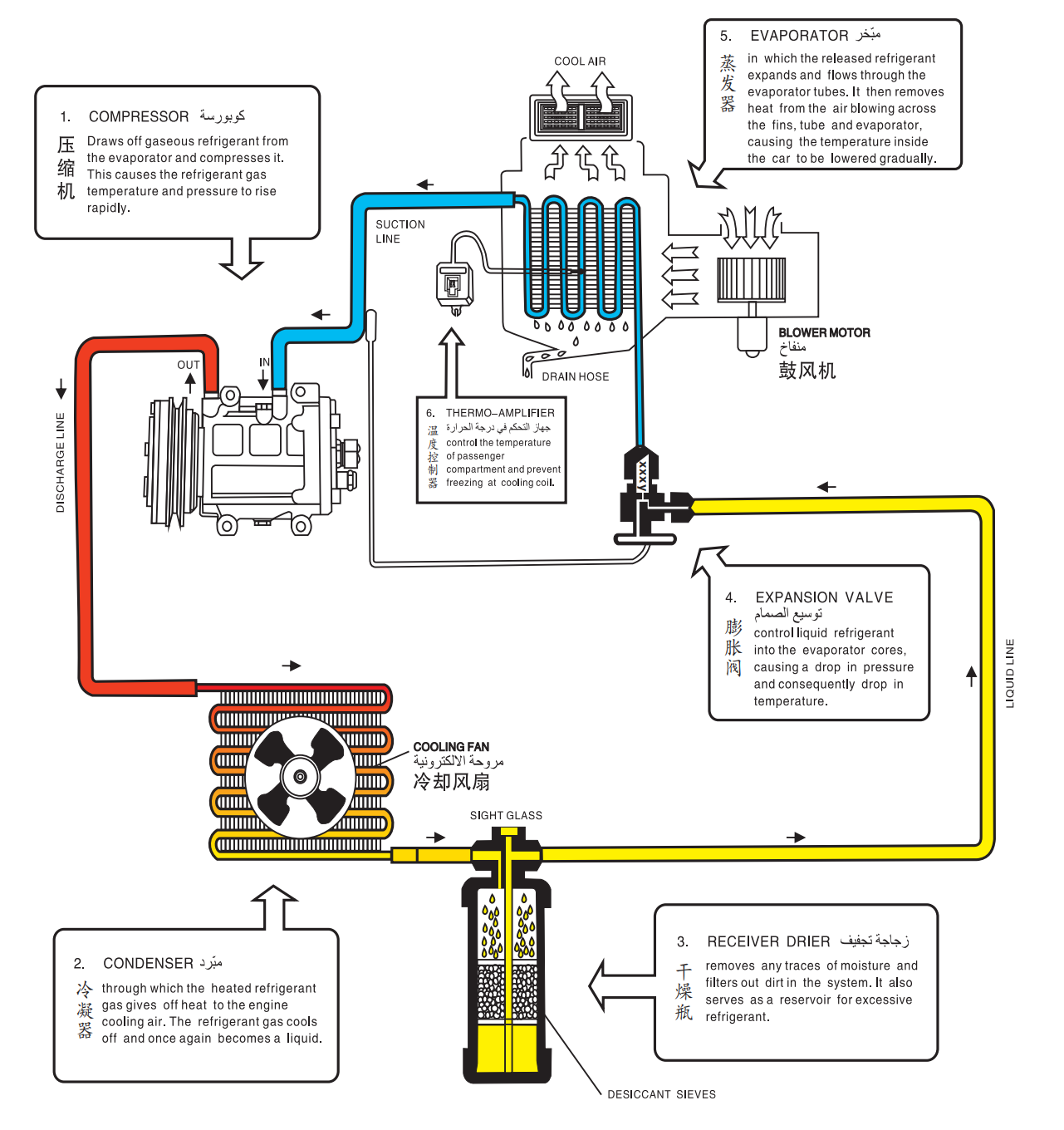

The automotive air conditioning system primarily consists of several components, including the compressor, condenser, expansion valve, evaporator, receiver-drier, and refrigerant. The compressor serves as the heart of the air conditioning system, responsible for drawing in low-temperature, low-pressure refrigerant gas and compressing it into high-temperature, high-pressure gas. The condenser cools and liquefies the high-temperature, high-pressure refrigerant gas while dissipating heat outside the vehicle. The expansion valve controls the flow of refrigerant and throttles the high-pressure liquid refrigerant to reduce its pressure, converting it into low-pressure liquid refrigerant. The evaporator is located inside the vehicle and absorbs heat from the interior, causing the refrigerant to transition from liquid to gas form, thereby achieving cooling effects. The receiver-drier stores liquid refrigerant and removes moisture and impurities from the refrigerant. Refrigerant is the medium that circulates within the air conditioning system, with common types including R134a, etc.

Structure and Function of the Condenser

The condenser is typically installed at the front of the vehicle, located in front of or beside the radiator. It resembles a radiator in appearance, consisting of numerous small pipes and fins. These tubes facilitate refrigerant flow, while the fins increase the heat dissipation area to enhance cooling efficiency. The tubes in the condenser are typically made of aluminum or copper due to their excellent thermal conductivity. The fins are secured to the tubes via welding or mechanical connections. The condenser's inlet and outlet are connected to the compressor and receiver-drier, respectively. After exiting the compressor, the refrigerant first enters the condenser's inlet, flows through the tubes, and exits via the outlet.

Working Principle of the Condenser

When the compressor is operating, it draws in low-temperature, low-pressure refrigerant gas and compresses it into high-temperature, high-pressure gas. This high-temperature, high-pressure gas then enters the condenser. Within the condenser, the high-temperature, high-pressure refrigerant gas flows through the tubes while exchanging heat with the external air. Since the external air temperature is typically lower than the refrigerant temperature, heat is transferred from the refrigerant to the air. As heat is dissipated, the temperature of the refrigerant gradually decreases, eventually transforming from a gaseous state to a liquid state. This process is called liquefaction. The liquid refrigerant then flows into the receiver-drier, where moisture and impurities are removed, before passing through the expansion valve into the evaporator. The efficiency of the condenser is closely related to the temperature of the external air, the airflow velocity, and the heat dissipation area of the condenser. If the external air temperature is too high or airflow is obstructed, the condenser's heat dissipation efficiency will decrease, thereby affecting the cooling performance of the air conditioning system.

Heat Dissipation Methods

The condenser's heat dissipation methods primarily include natural convection cooling, forced convection cooling, and water-cooled cooling.

Natural Convection Cooling: This method relies on the natural flow of surrounding air to dissipate heat. It has lower heat dissipation efficiency and is typically only suitable for small-scale or low-power air conditioning systems. The design of the condenser's heat exchanger fins is particularly important. Increasing the number and area of the fins can enhance cooling efficiency. The advantage of natural convection cooling is its simple structure, which does not require additional power devices. However, its efficiency is significantly influenced by environmental temperature and airflow conditions.

Forced Convection Cooling: This method involves using fans or other power devices to force air through the condenser, thereby improving cooling efficiency. It offers high heat dissipation efficiency and is suitable for most modern automotive air conditioning systems. Fans are typically installed in front of or behind the condenser and driven by an electric motor to rapidly circulate air through the condenser fins. The advantage of forced convection cooling is its high heat dissipation efficiency, which is not constrained by environmental airflow conditions. The disadvantage is the need for additional power devices (such as motors), which increases system complexity and energy consumption.

Water-Cooled Cooling: This is a more advanced heat dissipation method, where coolant circulates through the condenser to absorb the heat from the refrigerant and dissipate it outside the vehicle. It has very high heat dissipation efficiency but is structurally complex and costly. The advantage of water-cooled heat dissipation is its high heat dissipation efficiency, making it suitable for high-power or high-performance air conditioning systems. The disadvantage is that the system is complex and requires additional coolant circulation equipment, increasing maintenance costs.

Common Issues and Solutions

Condensers may encounter common issues during use, such as poor heat dissipation, refrigerant leaks, condenser blockages, and condenser corrosion.

Poor Heat Dissipation: This may be caused by dust accumulation on the condenser surface, deformed fins, or fan malfunctions. Solutions include regularly cleaning dust and debris from the condenser surface, inspecting fins for deformation, and promptly repairing or replacing them if deformed. Additionally, check if the fan is functioning normally, and repair or replace it promptly if there are any issues.

Refrigerant Leaks: These may be caused by condenser pipe ruptures, loose connections, or poor sealing. The solution is to inspect the condenser pipes and connections for signs of leaks, and repair or replace them promptly if there are any ruptures or loose connections. Additionally, check if the seals are aged or damaged, and replace them promptly if there are any issues.

Condenser Blockage: This may be caused by impurities or foreign objects in the refrigerant entering the condenser pipes. The solution is to regularly replace the refrigerant and the receiver-drier to prevent impurities from entering the condenser. If the condenser is already blocked, try cleaning it with professional tools; in severe cases, the condenser may need to be replaced.

Condenser Corrosion: This may be caused by moisture or corrosive substances in the refrigerant. The solution is to regularly check the purity of the refrigerant and promptly replace refrigerant containing moisture or impurities. Additionally, inspect the corrosion-resistant coating of the condenser for damage and repair it promptly if any is found.

Maintenance and Servicing

To ensure the normal operation of the condenser, regular maintenance and servicing are required.

Regular Inspection and Cleaning: Regularly inspect the condenser's appearance to check for dust, debris, or damaged fins. Use compressed air or a soft brush to clean dust and debris from the condenser's surface; avoid using high-pressure water jets to prevent damage to the fins. Inspect the condenser's pipes and connections for signs of leakage; if leakage is detected, repair or replace promptly.

Fan and Motor Inspection: Check if the condenser fan is functioning normally and if the motor has any abnormal noise or overheating issues. If any problems are found, they should be repaired or replaced promptly.

Refrigerant and Receiver-Drier Replacement: Regularly replace the refrigerant and the receiver-drier to ensure the purity of the refrigerant and the normal operation of the system. It is generally recommended to replace the refrigerant and receiver-drier every two years or after driving 40,000 kilometers.

Seal Inspection: Inspect the condenser's seals for signs of aging or damage, and replace them promptly if any issues are found to prevent refrigerant leaks.

Avoid Prolonged High-Temperature Operation: Avoid prolonged operation of the air conditioning system in high-temperature environments to prevent excessive heat dissipation load on the condenser. If the ambient temperature is too high, you can appropriately reduce the cooling intensity of the air conditioning system or increase the fan speed.

Future Developments

With the continuous development of automotive technology, condensers are also undergoing constant improvements and optimizations. In the future, condenser development will focus on the application of high-efficiency heat dissipation materials, intelligent heat dissipation systems, integrated design, and the use of environmentally friendly refrigerants.

High-Efficiency Heat Dissipation Materials: Research and development of new high-efficiency heat dissipation materials, such as graphene, to enhance the heat dissipation efficiency of condensers. These materials offer superior thermal conductivity and lighter weight, enabling better heat dissipation performance within the same volume.

Intelligent Heat Dissipation Systems: With the advancement of intelligent vehicle technology, condensers will be equipped with intelligent heat dissipation systems. Through sensors and controllers, the system can automatically adjust fan speed and heat dissipation intensity based on environmental temperature and the actual needs of the air conditioning system, achieving more efficient heat dissipation management.

Integrated Design: Condensers will be integrated with other air conditioning system components (such as compressors and evaporators) through integrated design, reducing system complexity and volume while improving reliability and efficiency.

Environmentally Friendly Refrigerants: With increasing environmental protection requirements, future condensers will increasingly use environmentally friendly refrigerants, such as natural refrigerants (e.g., carbon dioxide, ammonia) or new low global warming potential (GWP) refrigerants. These refrigerants have a smaller environmental impact and align with sustainable development requirements.

The automotive air conditioning condenser is a vital component that ensures the efficient operation of the air conditioning system. Understanding its structure, working principle, and maintenance requirements can help extend its lifespan and improve cooling performance. As automotive technology continues to advance, innovations in condenser design and materials will further enhance the efficiency and environmental friendliness of air conditioning systems.
