The Mystery of the Synergistic Operation of the Four Major Components in the Car Air Conditioning Refrigeration Cycle

Have you ever wondered what kind of magic makes the car so comfortable? Today, let's delve into the world of the car air-conditioning refrigeration cycle and uncover the mystery of the synergistic operation of the four major components.

I. The Origin and Development of the Car Air - Air-Conditioning Refrigeration Cycle

The history of car air conditioning can be traced back to the 1930s. Initially, car air - conditioning systems were merely simple ventilation devices that introduced outside air to cool the car. However, this method had

 a limited effect, especially in the hot summer. It was not until 1939 that the Packard Motor Car Company in the United States first introduced a refrigerated air - conditioning system into cars, ushering in a new era of car air - conditioning refrigeration. Since then, with the advancement of technology, car air - conditioning refrigeration technology has undergone several major changes and continues to develop.

II. The Basic Principle of the Car Air - Air-Conditioning Refrigeration Cycle

The core principle of the car air - conditioning refrigeration cycle is to use the phase change of the refrigerant to absorb and release heat. The refrigerant circulates continuously in the system, and through the four processes of compression, condensation, expansion, and evaporation, it transfers heat to achieve the purpose of lowering the car's temperature. This process may sound a bit complicated, but it is actually very similar to the refrigeration principle of the refrigerator we commonly use in daily life.

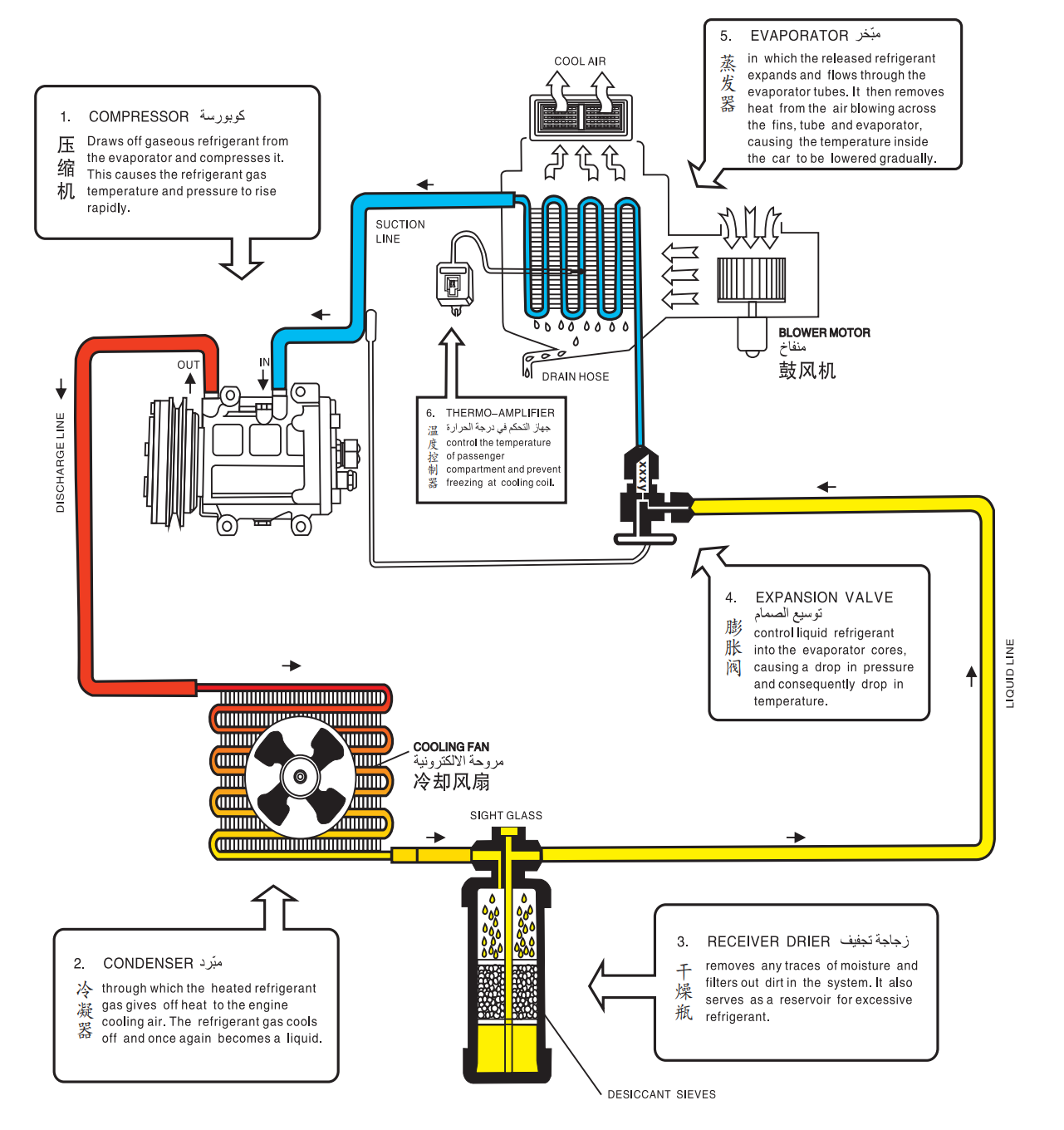

III. The Synergistic Operation of the Four Major Components

(I) Compressor: The “Heart” of the Refrigeration Cycle

The compressor is the core component of the car air - conditioning refrigeration cycle. It is like the human heart, providing power for the circulation of the refrigerant. When the compressor works, it draws in the low - low-temperature, low-pressure refrigerant gas and compresses it into high-temperature, high-pressure gas through compression. This process consumes the power of the engine, so in some old cars, you can clearly feel that the engine power decreases when the air conditioning is turned on.

There are many types of compressors. The common ones are the swash plate compressor, vane compressor, and scroll compressor. Each type of compressor has its unique advantages and disadvantages. For example, the swash plate compressor is compact and efficient, but it is relatively noisy; the vane compressor runs smoothly and is quiet, but its efficiency is slightly lower; the scroll compressor has the advantages of high efficiency and low noise, but its structure is complex and the cost is high.

(II) Condenser: The “Heat Mover”

The function of the condenser is to dissipate the heat from the high-temperature, high-pressure refrigerant gas discharged by the compressor into the outside air. It is usually located at the front of the car, adjacent to the engine's radiator. When the high-temperature, high-pressure refrigerant gas flows through the condenser, it exchanges heat with the surrounding air, releasing heat into the air, thus cooling and liquefying the refrigerant gas.

The heat-dissipation effect of the condenser is crucial to the performance of the air - conditioning system. If the condenser does not dissipate heat well, it will cause the refrigerant temperature to be too high, affecting the cooling effect of the air conditioning. Therefore, the design and installation of the condenser need to fully consider air flow and heat-dissipation area. Some high-end cars are also equipped with electric fans. When the vehicle is traveling at a low speed or stopped, the fan will automatically start to help the condenser dissipate heat better.

(III) Expansion Valve: The “Throttle Valve” for Refrigerant

The expansion valve is one of the key components in the car air - conditioning refrigeration cycle. Its function is to control the flow and pressure of the refrigerant. When the refrigerant flows out of the condenser and passes through the expansion valve, the pressure will drop sharply, the volume will expand, and a large amount of heat will be absorbed, causing part of the refrigerant liquid to vaporize. This process is like opening a bottle of cola. When the bottle cap is opened, the pressure inside the bottle suddenly drops, and the carbon dioxide gas will expand rapidly and be released.

The opening degree of the expansion valve can be automatically adjusted according to the car's temperature and cooling demand. When the car temperature is high, the expansion valve will increase the opening degree to increase the flow of refrigerant and improve the cooling effect; when the car temperature is low, the expansion valve will reduce the opening degree to reduce the flow of refrigerant to avoid excessive cooling. This automatic adjustment function allows the car air - conditioning system to always maintain the best cooling effect according to different environmental conditions and user needs.

(IV) Evaporator: The “Cold Air Maker”

The evaporator is the last component in the car air - conditioning refrigeration cycle. Its function is to absorb the heat in the car with the low - low-temperature, low-pressure refrigerant liquid after passing through the expansion valve, thereby reducing the car temperature. The evaporator is usually installed under the car dashboard. When the low - low-temperature, low-pressure refrigerant liquid flows through the evaporator, it absorbs the heat from the surrounding air, cooling and drying the air. At the same time, the refrigerant liquid will also vaporize in this process, turning into low - low-temperature, low-pressure gas, and then be sucked back into the compressor to start the next cycle.

The surface of the evaporator usually frosts because the refrigerant absorbs heat, causing the surface temperature of the evaporator to drop below the freezing point. Frosting can improve the cooling effect, but too much frost will affect the heat-exchange efficiency of the evaporator. Therefore, the car air - conditioning system will automatically defrost. By adjusting the flow and temperature of the refrigerant, the frost on the surface of the evaporator is melted to maintain the good working condition of the evaporator.

IV. Common Problems and Solutions for the Car Air - Air-Conditioning Refrigeration Cycle

(I) Poor Cooling Effect

Poor cooling effect is one of the common problems of the car air conditioning system. The possible reasons include insufficient refrigerant, poor heat dissipation of the condenser, expansion valve failure, evaporator blockage, etc. If the refrigerant is insufficient, it can be determined by checking the refrigerant pressure gauge and replenishing the refrigerant in time. If the condenser does not dissipate heat well, the dust and debris on the surface of the condenser can be cleaned to ensure smooth air flow. If the expansion valve fails or the evaporator is blocked, the corresponding components need to be repaired or replaced in time.

(II) Air Conditioning System Leakage

Leakage of the air - conditioning system will cause the refrigerant to be lost and affect the cooling effect. Common leakage points include the compressor shaft seal, condenser, evaporator, connecting pipes, etc. If an air - conditioning system leakage is found, the leakage point should be checked in time and repaired. During the repair process, it is necessary to pay attention to using suitable sealing glue and parts to ensure the good sealing of the repaired system.

(III) Air Conditioning Odor

The air - conditioning odor may be caused by the growth of bacteria or mold on the surface of the evaporator. After long-term use of the air conditioning, a large amount of dust and dirt will accumulate on the surface of the evaporator, providing a good environment for the growth of bacteria and mold. The method to solve the air - conditioning odor is to clean the evaporator regularly. A professional air - conditioning cleaner can be used for cleaning. At the same time, keeping the car air circulating and avoiding the long-term use of the air conditioning internal circulation can also effectively reduce the generation of odor.

V. The Future Development Trends of the Car Air - Air-Conditioning Refrigeration Cycle

With the continuous progress of science and technology, the car air - conditioning refrigeration cycle is also constantly developing and innovating. In the future, the car air - conditioning refrigeration cycle will develop in the direction of higher efficiency, energy-saving, environmental protection, and intelligence.

(I) High-Efficiency Refrigeration Technology

Researchers are developing new refrigerants and refrigeration technologies to improve the cooling efficiency of the air - conditioning system. For example, some new refrigerants have higher thermal conductivity and lower condensation temperature, which can achieve better cooling effects with the same compressor power. In addition, new refrigeration cycle systems are also emerging, such as magnetic refrigeration technology and thermoelectric refrigeration technology. These technologies have the advantages of high efficiency, energy-saving, and environmental protection, and are expected to be widely used in the future.

(II) Energy - Saving and Environmental Protection

In today's world, where energy is increasingly tight and environmental pollution is becoming more serious, energy-saving and environmental protection have become important directions for the development of the car air - conditioning refrigeration cycle. On the one hand, by optimizing the structural design and control strategy of the air - conditioning system, the energy consumption of the air - conditioning system is reduced. For example, the use of variable-frequency compressors can automatically adjust the speed of the compressor according to the car temperature and cooling demand, so as to achieve energy-saving operation. On the other hand, the development of environmentally friendly refrigerants reduces the destruction of the ozone layer and the emission of greenhouse gases. At present, some new environmentally friendly refrigerants have been widely used, such as R134a, R1234yf, etc. These refrigerants have the advantages of low toxicity, low flammability, and a minimal greenhouse effect, resulting in a smaller environmental impact.

(III) Intelligent Control

With the development of intelligent technology, the car air conditioning refrigeration cycle will also achieve intelligent control. In the future, the car air - conditioning system will be able to automatically adjust the working mode and parameters of the air - air-conditioning according to the user's personalized needs through sensors to monitor the car temperature, humidity, air quality, and other parameters in real time. For example, when the car temperature is too high, the air - conditioning system will automatically turn on the cooling mode and automatically adjust the air volume and direction according to the number and location of the people in the car. In addition, the intelligent air - conditioning system can also be integrated with other systems of the vehicle to achieve more intelligent control and management.

The car air - conditioning refrigeration cycle is a complex and exquisite system. It realizes the rapid reduction of car temperature and comfortable adjustment through the synergistic operation of the four major components. Understanding the principle of the car air - conditioning refrigeration cycle and the function of the components can not only help us better use and maintain the air - conditioning system, but also deepen our understanding of car technology. With the continuous progress of science and technology, the car air - conditioning refrigeration cycle will continue to optimize and innovate, bringing us a more comfortable, energy-saving, and environmentally friendly travel experience..
