The Science Behind Your Car's Cool Comfort: How Air Conditioning Works on Hot Days

On sweltering hot days, how does a car's air conditioning system keep us cool? Let's take a closer look at how a car's air conditioning system works. The car air-conditioning system operates based on the principles of thermodynamics and fluid mechanics, with several key components working together to cool the air inside the vehicle.

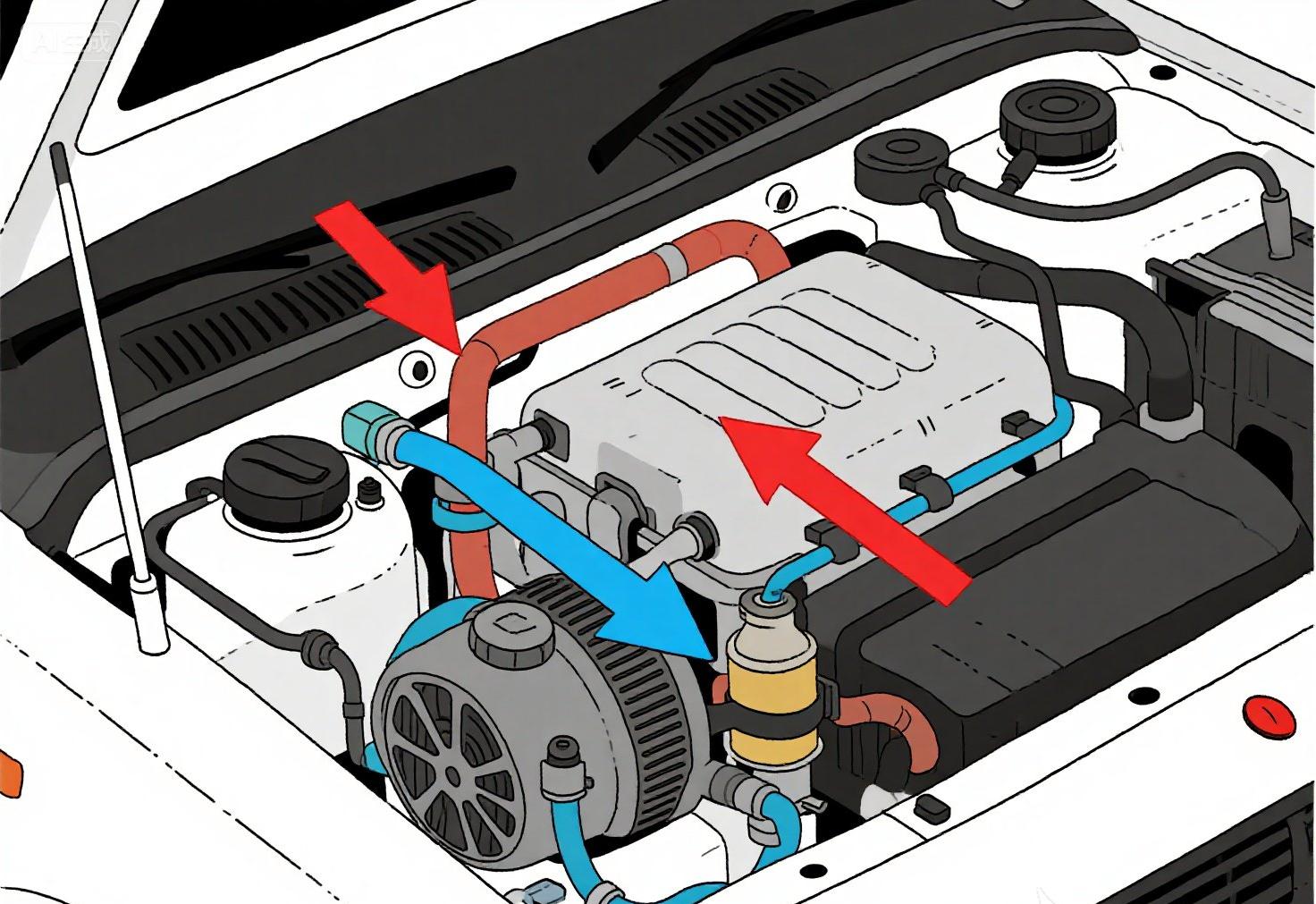

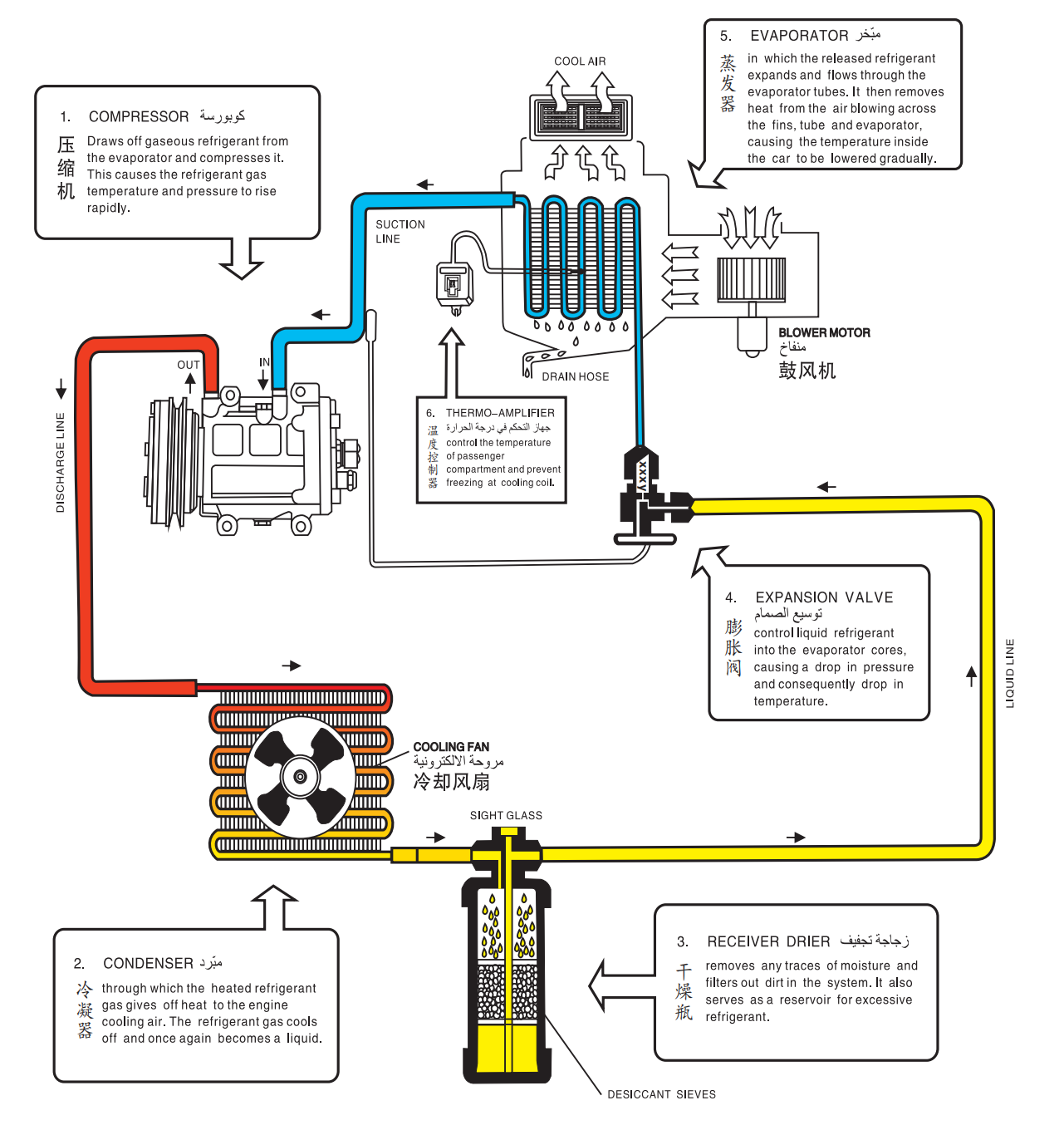

Component Locations and Functions

First, we examined the locations of these components and understood their functions. The compressor is mounted on the engine block, typically at the front end or on a bracket near the radiator and condenser, where it is connected to the engine. The condenser coils are located in front of the vehicle radiator, near the front grille of the vehicle. The receiver-drier is positioned between the condenser and the expansion valve, and is usually near the condenser. The expansion valve is generally located near the firewall, close to the point where the refrigerant lines enter the passenger compartment. The evaporator coil is located inside the passenger compartment, typically behind the dashboard, within the HVAC unit. The blower motor fan is also inside the passenger compartment, usually within the HVAC unit, near the evaporator.

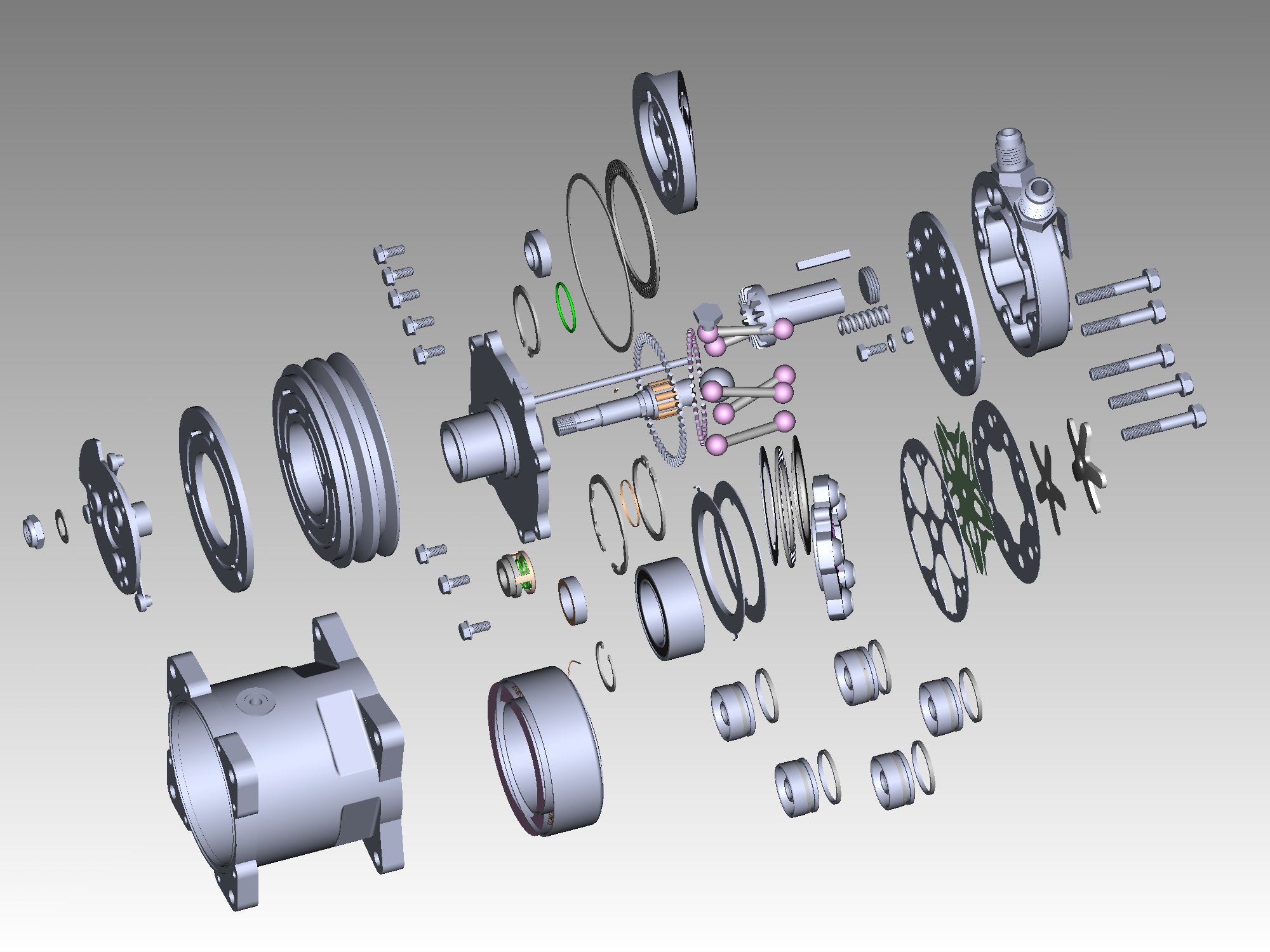

The Role of Refrigerant Gas

Refrigerant gas is a fluid specifically designed to circulate in an air-conditioning system. When the air conditioning is turned on in the climate control unit, a signal is sent to engage the air-conditioning compressor clutch. The compressor is typically belt-driven and connected to the engine crankshaft pulley via a belt drive. When the engine is running, it drives the compressor and provides the mechanical energy required to compress refrigerant gas. The compressor consists of one or more pistons located within the cylinders that compress refrigerant gas. The refrigerant initially enters the compressor as a low-pressure gas, which is then compressed, causing its pressure and temperature to increase. The compressed refrigerant gas exits the compressor at a high pressure and temperature and flows into the condenser’s inlet.

 Heat Dissipation in the Condenser

The condenser is typically located at the front of the vehicle, near the radiator, to utilize the airflow while the vehicle is in motion. The condenser consists of a series of tubes and fins that provide a large heat exchange surface area. As the hot refrigerant gas from the compressor flows through the condenser coils, it releases heat to the ambient air. The condenser fan and airflow generated by the vehicle's movement ensure sufficient airflow through the condenser, effectively dissipating heat and enhancing the cooling. As the refrigerant releases heat, its temperature drops below the condensation point, causing it to transition from a high-pressure gas to a high-pressure liquid, which is known as a phase change. The cooled refrigerant is then recirculated to the receiver-drier. The receiver-drier separates the residual gas from the liquid refrigerant, and its internal structure promotes this separation to ensure that only the liquid refrigerant flows to the expansion valve. The filtered, moisture-free, high-pressure liquid refrigerant exits the receiver-drier and flows toward the expansion valve.

Pressure and Temperature Regulation by the Expansion Valve

The expansion valve is a critical component of automotive air-conditioning systems and is responsible for regulating the flow of refrigerant from the high-pressure side to the low-pressure side of the system. When the high-pressure liquid refrigerant passes through the expansion valve, the pressure suddenly drops, causing the temperature to further decrease, and the refrigerant transforms from liquid to gas. The refrigerant exits the expansion valve as a mixture of liquid and gas and enters the evaporator. The evaporator is typically located within the HVAC unit behind the dashboard and is usually made of either aluminum or copper. These coils contain refrigerants that absorb heat from the air, and the fins attached to the evaporator coils increase the surface area to enhance the heat transfer. The evaporator coils feel cold because the refrigerant inside undergoes a phase change from a high-pressure liquid to a low-pressure gas, causing the overall temperature to decrease. At this point, warm air from the cabin was drawn into the HVAC unit by the blower fan. As warm air flows over the evaporator coils, the refrigerant inside the coils absorbs heat from the air and cools. The cooled air is then blown out of the HVAC unit by the blower fan and circulated through the vents into the cabin, thereby providing a comfortable environment for passengers.

Dehumidification and Air Filtration

In addition to cooling the air, the evaporator also serves to dehumidify it. As warm air flows over the cold evaporator coils, the moisture in the air condenses into water droplets. These droplets are collected and expelled outside the vehicle, reducing the humidity inside the cabin and enhancing comfort, thereby ensuring a comfortable, cool, and pleasant environment for passengers inside the vehicle.

The cabin air filter and internal circulation button play crucial roles in ensuring clean air and a comfortable environment inside the vehicle. Their operation is as follows: When the internal circulation button is off, the system draws fresh air from outside the vehicle, which helps to ventilate the cabin and reduce stuffiness. Fresh air also helps clear fogged windows more effectively, especially under humid conditions. When the interior circulation button is activated, the HVAC system of the vehicle stops drawing air from the outside and instead recirculates the existing air inside the cabin. By circulating the already cooled air, the air conditioning system can cool the cabin more quickly and efficiently. In both interior and exterior circulation modes, air must pass through a filter. The air-conditioning cabin air filter is typically located behind the glove compartment or below the passenger side dashboard. When the car’s air conditioning is turned on, air is either drawn in from outside the vehicle or circulated inside the cabin. The air passes through the cabin air filter. The filter captures pollutants and provides clean air. The filtered air is then distributed through vents, ensuring that the driver breathes clean air while driving.

The Continuous Cooling Cycle

At this point, the gaseous refrigerant leaves the evaporator and flows back to the compressor. The compressor receives the low-pressure gas, compresses it, and then sends it back to the condenser. This cycle continues as long as the air conditioning system is on and the blower fan operates. The evaporator absorbs heat from the cabin air, the condenser releases heat to the outside air, and the expansion valve controls the flow of refrigerant between the two. This continuous cycle allows the air-conditioning system to maintain a comfortable temperature and humidity level inside the vehicle while it is operating.

Electric Vehicles: A Modern Twist

In electric vehicles, the air-conditioning compressor is driven by an electric motor powered by the vehicle's high-voltage battery system. Electric compressors have fewer moving parts and do not rely on belts, which reduces their maintenance requirements and enhances reliability. In summary, the goal of an air conditioning system is to cool the interiors of traditional gasoline-powered and electric vehicles. Through this precise heat exchange system, the vehicle can remain cool and comfortable, even under a scorching sun.

Understanding the inner workings of your car's air conditioning system not only helps you appreciate the engineering behind it but also ensures that you can better maintain and troubleshoot it. Whether you are driving a traditional gasoline-powered vehicle or an electric one, the principles remain the same—keeping you cool and comfortable on even the hottest days.
