The Science of Cooling: How Refrigerants Achieve Continuous Cooling

On a scorching summer day, the cool breeze from an air conditioner; on a quiet afternoon, a refreshing drink from the refrigerator—modern life is inseparable from refrigeration technology. But have you ever wondered how these devices "create" cold air out of thin air? The magician behind this is a special substance called a refrigerant.

This article will take you on an in-depth exploration of the mysteries of refrigerants, revealing how they repeatedly liquefy and vaporize in a closed loop to continuously "transport" heat, creating a comfortable and cool environment for us.

The Core of Cooling: The Power of Phase Change

To understand refrigeration, one must first grasp a fundamental physical principle: substances absorb or release heat when they change state. This process is known as "phase change."

The most classic example is water. When water boils into steam, it needs to absorb a large amount of heat (evaporative cooling). Conversely, when steam condenses back into water, it releases the same amount of heat (condensation heating). Refrigeration technology masterfully utilizes this principle.

A refrigerant is a special chemical with a very low boiling point. This means it can easily vaporize from a liquid to a gas at room temperature and normal pressure. This property makes it the ideal "working fluid" in a refrigeration system. By artificially controlling pressure and temperature, we can make the refrigerant precisely evaporate and liquefy in different parts of the system, allowing it to act as a heat "transporter."

Exploring the Four Core Components of Refrigeration

A typical refrigeration system consists of four key components connected in series: the compressor, condenser, expansion valve, and evaporator. The refrigerant travels endlessly within this closed network of pipes, completing a specific task at each station.

1. The "Heart" of the Cycle

The compressor is the power source of the entire system, much like a human heart. Its job is to draw in the low-temperature, low-pressure refrigerant gas from the evaporator and compress it forcefully. This process consumes electrical energy, converting it into the internal energy of the refrigerant, ultimately producing a high-temperature, high-pressure gas.

2. The "Heat Mover"

The high-temperature, high-pressure gas, carrying a great deal of thermal energy, then enters the condenser. Here, the refrigerant exchanges heat with the surrounding environment (usually air), releasing a large amount of heat. As it loses heat, the refrigerant condenses from a gas into a medium-temperature, high-pressure liquid. This is why the air blowing from an outdoor AC unit feels hot.

3. The "Throttling" Magician

The high-pressure liquid from the condenser then flows through an extremely narrow passage, known as the expansion valve (or capillary tube). As the liquid passes through this "bottleneck," its pressure drops dramatically in a process called "throttling." This sudden drop in pressure causes a simultaneous sharp drop in temperature, turning the refrigerant into a low-temperature, low-pressure liquid, perfectly prepared for the next step of heat absorption.

4. The "Cold Maker"

Finally, the low-temperature, low-pressure liquid refrigerant flows into the evaporator, located inside the indoor AC unit or refrigerator. Here, it avidly absorbs heat from the surrounding environment, causing it to rapidly evaporate (boil) back into a low-temperature, low-pressure gas. This heat absorption process rapidly cools the air around the evaporator, which is then blown out by a fan, creating the cool air we feel.

The Complete Journey of a Refrigerant

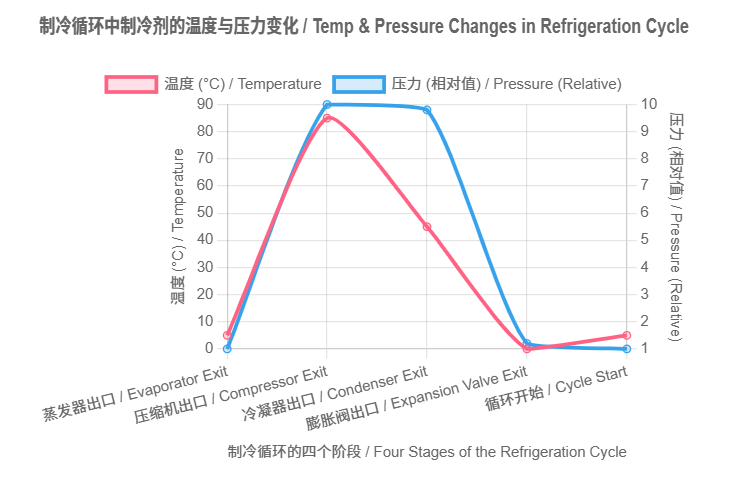

In summary, the refrigerant's cycle is an elegant dance of pressure, temperature, and state changes. We can visualize the refrigerant's state changes across the four core components with a chart.

The chart above clearly illustrates the refrigerant cycle:

Compression: Pressure and temperature soar.

Condensation: Releases heat, changing from gas to liquid.

Throttling: Pressure and temperature plummet.

Evaporation: Absorbs heat, changing a liquid back into a gas.

Why Can Refrigerants Cycle "Endlessly"?

This cycle is not self-sustaining; it relies on a crucial external energy input—the electrical energy consumed by the compressor. This energy drives the compressor to do work, providing the power needed to maintain the pressure differential across the system.

The reason refrigerants can repeatedly undergo phase changes in this closed system without being consumed is due to two key factors:

1. Chemical Stability: Refrigerants are chemically stable substances. The physical phase changes they undergo are reversible, and the substance itself is not consumed or broken down during the cycle.

2. Closed-System Design: The entire refrigeration system is hermetically sealed. In theory, no refrigerant should leak, allowing it to participate in the cycle indefinitely.

Therefore, the refrigeration cycle is more like a highly efficient, power-driven heat transfer system that uses a refrigerant as its medium, rather than a perpetual motion myth.

Common Refrigerants and Their Future

Historically, various refrigerants have been used. Early chlorofluorocarbons (CFCs) like R-22 have been phased out due to their destructive effect on the ozone layer. Today, environmentally friendlier, ozone-safe refrigerants like R-134a (common in car ACs) and R-410A (common in home ACs) are widely used.

However, even these newer refrigerants often have a high Global Warming Potential (GWP). Consequently, the global industry is moving towards next-generation refrigerants that are even more eco-friendly and efficient, such as alternatives with lower GWP like R-32 and R-290 (Propane). The choice of an environmentally friendly refrigerant has become a key measure of advanced refrigeration technology.
