The Ultimate Guide to Inspecting Used Car Air Conditioning Systems

When buying a used car, the air conditioning system is often one of the most overlooked yet most expensive repair items. A complete AC system inspection can help you avoid purchasing pitfalls and provide important references for future maintenance. This guide provides you with a professional and comprehensive used car AC inspection checklist.

Why Is AC Inspection So Important?

High Repair Costs: AC system repairs typically cost between $300-$1200, with severe failures costing even more.

Hidden Issues: Many AC problems are difficult to detect during short test drives.

Safety Impact: AC failures can cause window fogging, affecting visibility.

Comfort Requirements: Especially during hot summers and cold winters, AC is essential.

Exterior Inspection

Condenser Appearance: Check the condenser behind the front grille for obvious damage, deformation, or blockage.

Line Inspection: Observe AC lines in the engine bay for oil stains, corrosion, or damage.

Compressor Condition: Check the compressor housing for cracks or oil leaks.

Belt Wear: Examine the AC belt tension and wear level.

Joint Sealing: Check connection points for signs of refrigerant leakage.

Warning: If you find green or yellow oil stain traces, it’s likely a sign of refrigerant leakage - this is a serious problem!

Functional Testing

Startup Test: Turn on the AC at engine idle, observe if the compressor starts normally.

Cooling Effect: Set to the lowest temperature, vent temperature should drop below 50°F within 5 minutes.

Airflow Test: Test all fan speed levels for normal operation and unusual noises.

Temperature Control: Adjust the temperature knob, check if temperature changes are responsive.

Vent Modes: Test face, foot, defrost, and other vent modes.

Recirculation: Switch between fresh air and recirculation modes, confirm proper function.

Pro Tip: Using a thermometer to measure vent temperature is the most accurate method. Normally, cooling vent temperature should be 27-36°F lower than ambient temperature.

In-Depth Inspection

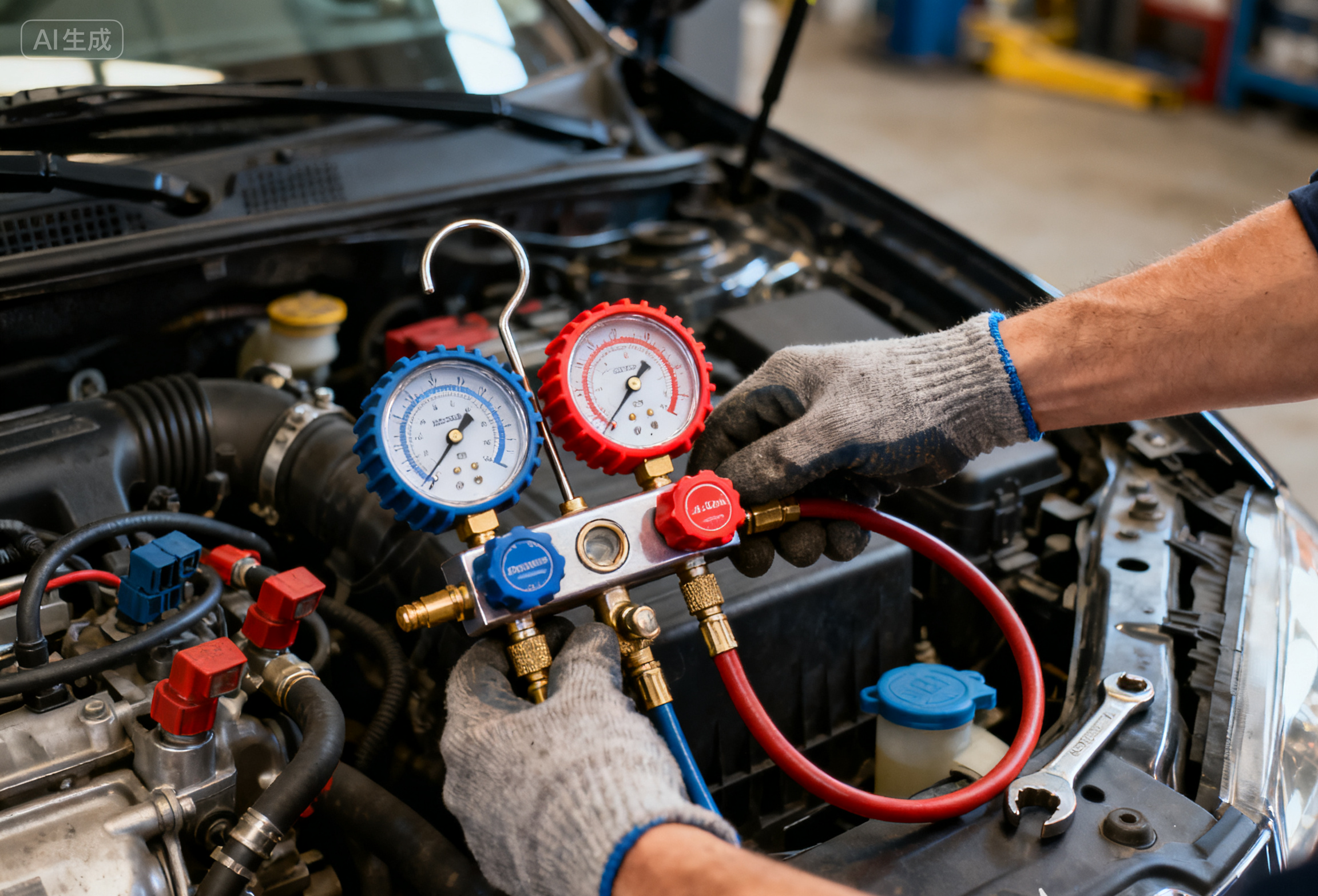

Pressure Test: Use professional equipment to check if system high/low pressures are within the normal range.

Refrigerant Level: Judge refrigerant sufficiency through the sight glass or pressure gauges.

Cabin Air Filter: Check the filter condition to assess replacement timing and maintenance history.

Evaporator Condition: Check for odors that may indicate evaporator mold.

Electrical System: Inspect AC-related fuses and relays for proper operation.

Common Issues and Solutions

   Poor Cooling:

     Possible Causes: Insufficient refrigerant, compressor failure, condenser blockage.

    Repair Cost: $150-$750

Unusual Noises:

     Possible Causes: Compressor bearing wear, fan blade damage, or loose belt.

    Repair Cost: $75-$450

Odor Issues:

     Possible Causes: Evaporator mold, dirty filter, or line contamination.

    Repair Cost: $30-$225

 Possible Causes: Control module failure, sensor damage, or wiring issues.

Repair Cost: $45-$300

Professional Advice

Best Inspection Time: Choose hot weather for inspection to easily identify problems.

      Professional Testing: Recommend comprehensive testing by professional technicians, typically costs $30-$75.

      Service Records: Review vehicle service records to understand the AC system maintenance history.

      Warranty Inquiry: Ask the seller about AC system warranty coverage.

      Budget Preparation: Reserve $150-$450 budget for potential AC repairs.

Conclusion

Used car AC system inspection is a crucial step that cannot be overlooked in the car buying process. Through systematic inspection, you can not only avoid purchasing vehicles with serious AC problems but also prepare for future maintenance. Remember, while professional inspection requires some time and cost, it’s a very worthwhile investment compared to high repair costs later.
