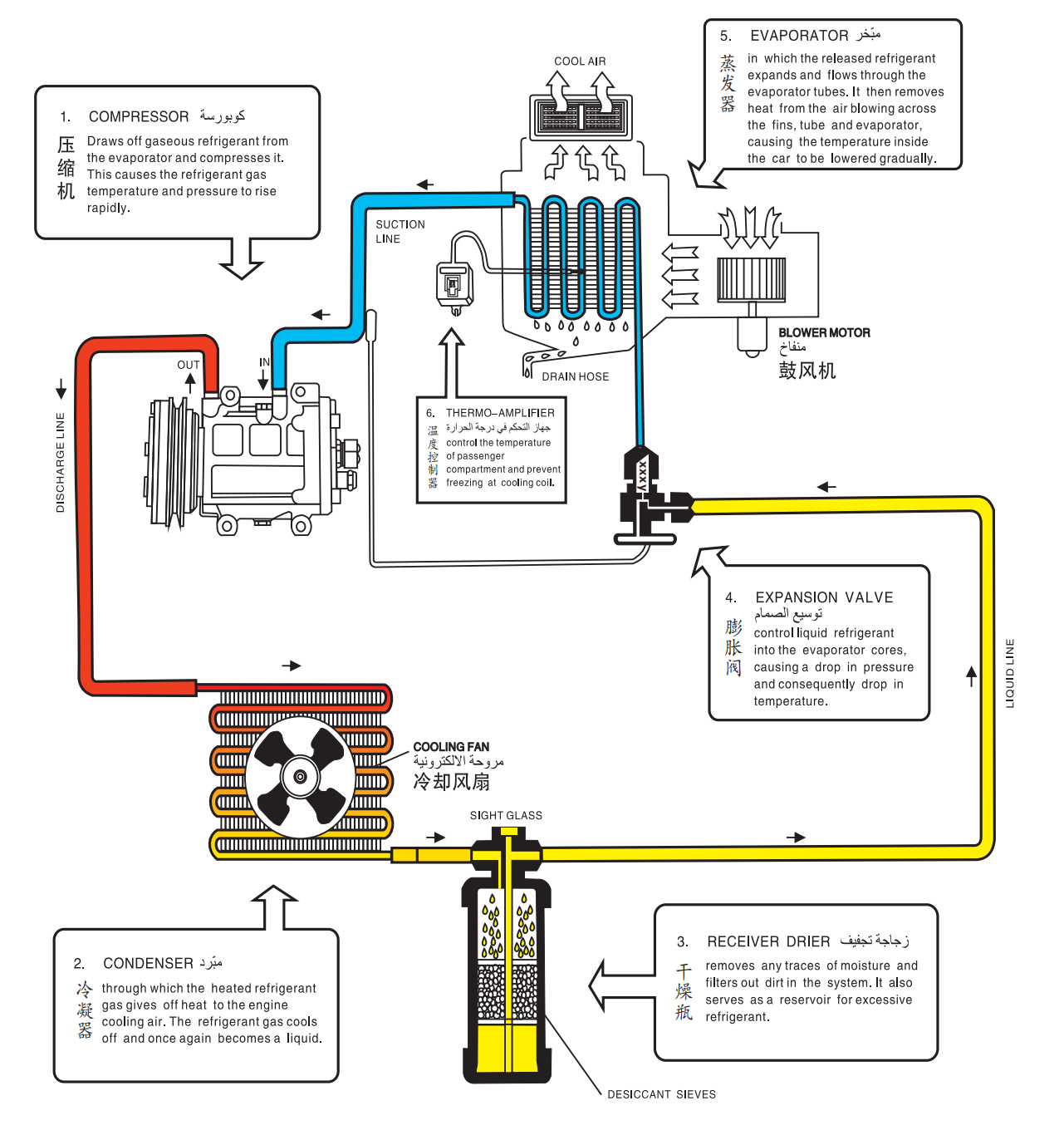

The air-conditioning condenser is a crucial component of the air-conditioning system of a car. Its primary function is to convert a high-temperature, high-pressure gaseous refrigerant into a liquid state, thereby achieving a cooling effect. The performance of the condenser directly affects the cooling efficiency and service life of an air conditioning system. However, owing to its long-term exposure to harsh external environments, the condenser is prone to various faults. This article provides a detailed introduction to the common problems of car air conditioning condensers and their solutions, helping car owners better maintain and care for their air conditioning systems to ensure their normal operation.
Poor heat dissipation is one of the most common problems associated with condensers. When the surface of the condenser is covered with dust, grease, or debris, the heat dissipation efficiency is significantly reduced. This prevents the refrigerant from being effectively cooled, thereby affecting the cooling performance of the air-conditioning system. Specific symptoms include an increased outlet temperature of the air conditioning system, a slower cooling speed, and, in extreme cases, an automatic shut-down of the air conditioning system owing to overheating.
Dust Accumulation: During vehicle operation, dust and debris in the air can adhere to the surface of the condenser, forming a thick layer of dirt that hinders heat dissipation.
Grease Adhesion: The high-temperature environment in the engine compartment can cause engine oil, coolant, and other liquids to evaporate and adhere to the condenser, further reducing the heat dissipation efficiency.
Fan Failure: If the condenser cooling fan does not operate properly, it will lead to poor heat dissipation. Fan failure can be caused by a damaged motor, faulty relay, or problems with electrical connections.
Regular Cleaning of the Condenser: It condenser should be checked for cleanliness every six months or every 10,000 km. A high-pressure water gun or special cleaning agent is used for thorough cleaning. During the cleaning process, pay attention to the direction of the water flow should be consistent with the direction of the airflow through the condenser to avoid damaging the fins.
Inspect the Cooling Fan: Check whether the fan motor, relay, and electrical connections are working properly. If any problems are detected, the damaged parts should be promptly replaced. Additionally, dust and debris from the fan blades should be cleaned regularly to ensure normal operation.
Use of Heat Dissipation Enhancer: In high-temperature environments, a heat dissipation enhancer can be used to improve the heat dissipation efficiency of the condenser. The heat dissipation enhancer can adhere to the surface of the condenser, forming a thermally conductive film that helps dissipate heat more effectively.
2. Condenser Blockage
Condenser blockage is another common fault in heat pumps. Blockages usually occur in the internal pipes of the condenser, preventing the cooling medium from flowing properly. This not only reduces the cooling effect but also increases the system pressure, thereby increasing the burden on the air-conditioning compressor.
Dust and Debris Entry: During vehicle operation, dust and debris can enter the internal pipes through the air intake of the condenser, gradually accumulating and causing blockages.
Refrigerant Contaminants: Contaminants or residues in the refrigerant can also accumulate in the condenser pipes, causing blockages.
Pipe Corrosion: Exposed to a humid environment for a long time, the condenser pipes may corrode. Corrosion products can flake off and block pipes.
Mild Blockage Treatment: For mildly blocked condensers, you can try using a high-pressure air gun or a water gun can be used to flush from the opposite direction of the condenser. This method can push the blockage out of the pipes and restore the normal flow. During the flushing process, the pressure was controlled to avoid damaging the condenser.
Severe Blockage Treatment: If the condenser is severely blocked and cannot be resolved by flushing, it may be necessary to replace the entire condenser. When replacing the condenser, it is recommended to choose a high-quality product that matches the original vehicle and ensure that the installation process meets the technical specifications.
Preventive Measures: Regularly inspect the air intake of the condenser and clean any dust and debris that may enter. Simultaneously, the purity and cleanliness of the refrigerant should be ensured to prevent impurities from entering the system.
Condenser leakage is a serious fault that can lead to refrigerant loss, reduced cooling performance of the air conditioning system, and even potential safety hazards. Leaks usually occur in the pipes, connections, and seals of the condenser.
Pipe Cracks: Over time, condenser pipes may develop cracks due to vibration, corrosion, or external impacts.
Loose Connections: The connections of the condenser may become loose due to improper installation or long-term use, resulting in poor sealing.
Seal Aging: Seals may age or become damaged over time owing to the effects of high temperature, high pressure, and chemical substances, losing their sealing properties.
Inspect for Leaks: Use a professional leak detector or soapy water to detect leaks. Soapy water was applied to the suspicious areas of the condenser, and bubbles were observed. The appearance of bubbles indicated a leak at that location.
Repairing leaks: For small leaks, you can try to repair them using welding or sealant. During the repair process, the quality of the welding or even the application of the sealant should be ensured to prevent further leakage.
Replace the Condenser: If multiple leaks or the damage occur, it is recommended to replace the entire condenser. When replacing it, ensure that a high-quality condenser is selected and installed by professional technicians.
Condenser deformation is typically caused by vehicle collisions or external impacts. Deformation can affect the heat dissipation and cooling performance of the condenser, and in severe cases, it may lead to refrigerant leakage.
Vehicle Collision: In traffic accidents, the front part of the vehicle may be impacted, causing the condenser to deform.
External Force Compression: During vehicle maintenance or repair, an accidental external force applied to the condenser can also cause deformation.
Mild Deformation Repair: For mildly deformed condensers, professional shaping tools can be used for repair. During the repair process, pay attention to the force applied to avoid further damage to the condenser should be considered. After the repair, the heat dissipation and cooling performance were checked to determine whether they had returned to normal.
Severe Deformation Treatment: If the condenser is severely deformed and cannot be restored to its original performance through repair, it should be replaced with a new one. When replacing the condenser, ensure that the new condenser is compatible with the other components of the vehicle and is installed correctly.
To extend the service life of the condenser and ensure the normal operation of the air-conditioning system, car owners are recommended to regularly perform the following maintenance tasks:
Regularly Inspect the Cleanliness of the Condenser: The cleanliness of the condenser should be checked every six months or every 10,000 km. If dust or debris is found on the surface, clean it promptly.
Inspect the Cooling Fan and Electrical Connections: Regularly check whether the condenser's cooling fan is operating normally and whether the electrical connections are secure. If any problems are detected, the damaged parts should be repaired or replaced promptly.
Avoid External Impacts on the Condenser: During driving, avoid collisions or scratches on the condenser. When maintaining or repairing the vehicle, the condenser should be protected, and external force should be avoided.
Regularly Check the Refrigerant Level and Pressure: Ensure that the refrigerant level and pressure meet the requirements of the vehicle manufacturer. If the refrigerant is insufficient or the pressure is abnormal, replenish or adjust it in a timely manner.
The normal operation of a car air-conditioning condenser is crucial for the comfort and safety of the vehicle. By understanding the causes and solutions of common faults, car owners can better maintain and care for the condenser to extend its service life. Regular inspection and maintenance are key to ensuring the proper operation of the condenser. Simultaneously, if complex fault problems are encountered, it is recommended to seek help from professional technicians promptly.
